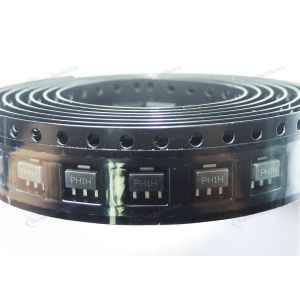

PHA-1H+ is an advanced wide - band amplifier fabricated by Mini - Circuits using E - PHEMT technology
- Functions
- Ultra - high IP3: It has an extremely high third - order intercept point (IP3), which can provide linear performance in multi - carrier and complex signal environments, ensuring that the signal is less distorted.
- Wide - band and high - dynamic range: It covers a wide frequency range from 0.05GHz to 6.0GHz, and can provide a high - dynamic range in this frequency range without the need for external matching components, which is convenient for circuit design.
- Low noise figure: With low noise characteristics, it can reduce the noise interference in the signal, improve the signal - to - noise ratio of the system, and is suitable for applications requiring high - quality signals.
- Good return loss: It has good input and output return loss in a wide frequency range. Up to 4GHz, the return loss can reach 10 - 23dB, which can effectively reduce signal reflection and improve signal transmission efficiency.
- Good thermal performance: Housed in a SOT - 89 package, it has good thermal performance, which can ensure the stable operation of the device, and its operating temperature can reach 105°C.
- Batch - to - batch repeatability: It has repeatable performance from batch to batch, which can ensure the consistency of product performance and is conducive to large - scale production and application.
- Applications
- Base station infrastructure: It can be used in base station equipment, providing high - quality signal amplification for wireless communication base stations, helping to improve the communication quality and coverage of base stations.
- Portable wireless devices: Suitable for various portable wireless devices, such as mobile phones, tablets, etc., to enhance the signal receiving and transmitting capabilities of devices, and improve the stability and efficiency of wireless communication.
- CATV and DBS: Applied to cable television (CATV) and direct - broadcast satellite (DBS) systems, it is used for signal amplification and processing in the system to ensure the stable transmission and high - quality reception of television signals.
- MMDS and WLAN: Used in multi - channel multipoint distribution service (MMDS) and wireless local area network (WLAN) systems, which can help improve the signal strength and transmission quality of the network, and provide a better network connection experience.
- LTE system: It is especially suitable for long - term evolution (LTE) and other advanced digital communication systems, which can meet the requirements of these systems for excellent adjacent - channel leakage ratio (ACLR) suppression and low error vector magnitude (EVM), and ensure the normal operation of the system.
-
