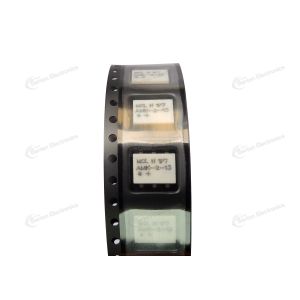

AMK-2-13+ 2X SMT Multiplier, Output Freq 20 - 1000 MHz
AMK-2-13+ is a frequency multiplier, which has the following functions and applications:
Functions
-
- Broad - band operation: It can work in a relatively wide frequency range, with an operating frequency of 20 MHz to 1000 MHz.
- Low conversion loss: The typical conversion loss is 11.4 dB, which can effectively reduce the energy loss during the
- frequency - doubling process and improve the efficiency of signal processing.
- High rejection of F1 and F3: It has a high - rejection performance for F1 and F3, reaching - 45 dBC type,
- which can effectively suppress interference signals and improve the purity of the output signal.
- Other features: It has the advantages of low - cost and can be washed with water. Its maximum rated RF input power is 23 dBm,
- and it can work stably in the temperature range of - 40 °C to 85 °C, with a storage temperature range of - 55 °C to 100 °C.
- Applications
- Synthesizers: It is used in synthesizers to generate high - frequency signals with specific frequencies,
- helping to realize the function of frequency synthesis and providing stable frequency signals for the system.
- Local oscillators: As a key component of local oscillators,
- it can provide high - quality local oscillation signals, which are widely used in radio frequency communication systems to realize frequency conversion and modulation and demodulation functions.
- Satellite up/down converters: In satellite communication systems,
- it is used in up - converters and down - converters to convert the frequency of satellite signals, so as to realize the transmission and reception of signals between satellites and ground stations.
-
