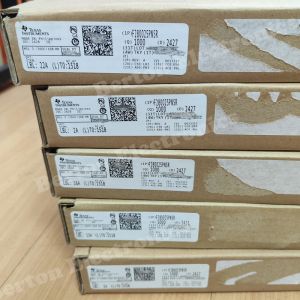

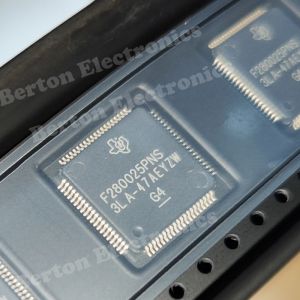

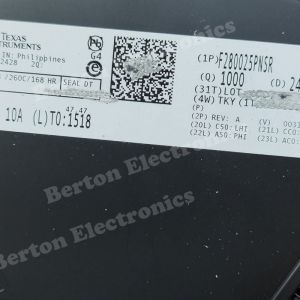

32 Bit Real Time Microcontroller MCU Texas Instruments ICs F280025PNSR

Functionality

1. Processing Core
   • 32-bit C28x DSP core running at 100 MHz, supporting both fixed-point and floating-point operations via an integrated IEEE 754 Floating-Point Unit (FPU) .
   • Trigonometric Math Unit (TMU) accelerates complex calculations for motor control algorithms (e.g., Field-Oriented Control, FOC) .
   • CRC engine (VCRC) and 10 hardware breakpoints enhance reliability and debugging capabilities
2. Memory & Storage
   • 128KB Flash (ECC-protected) and 24KB RAM (parity/ECC-protected) for code storage and data processing
   • Dual-zone security with encrypted flash programming for intellectual property protection
3. Analog & Control Peripherals
   • 14 Enhanced PWM (ePWM) channels with 150ps resolution for precise control of power stages (e.g., three-phase inverters, LLC converters) .
   • Two 12-bit ADCs (3.45 MSPS) with 4 post-processing blocks (PPB) for real-time signal conditioning .
   • Three Enhanced Capture (eCAP) modules and two Quadrature Encoder Pulse (eQEP) modules for motor feedback and motion control .
   • Configurable Logic Block (CLB) enables FPGA-like custom logic for advanced control algorithms
4. Communication Interfaces
   • PMBus, CAN, LIN, SPI, I2C, and UART for connectivity with power management ICs, sensors, and host systems
   • Fast Serial Interface (FSI) supporting 200 Mbps for high-speed data transfer across isolation boundaries .
5. Thermal & Safety Features
   • -40°C to 125°C operating temperature range (suffix "S") with AEC-Q100 qualification for automotive applications (suffix "Q")
   • Hardware Built-in Self-Test (HWBIST) and Memory Power-On Self-Test (MPOST) for functional safety compliance (ISO 26262, IEC 61508) .

Applications

1. Industrial Motor Control
   • Three-phase AC induction motors (ACIM) and permanent magnet synchronous motors (PMSM) in factory automation, robotics, and pumps
   • Dual three-phase motor drives for electric vehicles (EVs) and hybrid systems, leveraging ePWM synchronization for precise phase control
   • Solar inverters and energy storage systems requiring high-efficiency power conversion with GaN/SiC devices
2. Power Electronics
   • Zero Voltage Switching (ZVS) full-bridge converters and peak current mode-controlled buck modules for server power supplies and datacenters
   • LLC resonant converters in consumer electronics (e.g., adapters, TVs) for high efficiency and low EMI
   • Digital power management for telecom base stations and industrial equipment via PMBus interface .
3. Automotive Systems
   • EV traction inverters and battery management systems (BMS) with AEC-Q100-qualified variants (e.g., F280025-Q1) .
   • Start-stop systems and 48V mild hybrids requiring low-latency control and thermal robustness .
4. Renewable Energy
